Machine Vision

Exatron offers integrated vision upgrades for a wide range of systems and applications.

Precision BGA, QFN, and leaded 3D measurementPrecision BGA, QFN, and leaded 3D measurement.

  • On the fly inspections.
  • Flexible and intuitive user interface.

Economical 2D InspectionEconomical 2D Inspection.

  • Custom illumination.
  • Robotic control for precision handling.

Pattern verification and Optical Character RecognitionPattern verification and Optical Character Recognition

  • Latest technology.
  • Custom software solutions.

Smart Mark® laser marker vision upgradeSmart Mark® laser marker vision upgrade

  • Aligns new marks to existing marks on each individual device.
  • Ensures precision marking.

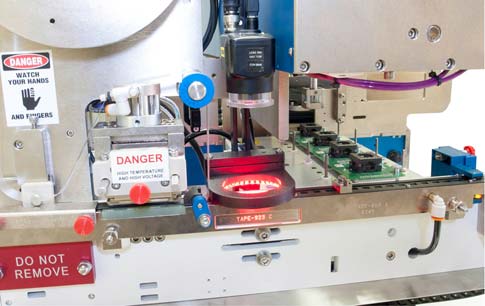

Tape and reel inspection

  • Pin1, orientation, upside down, and out of pocket status.
  • Ensures no empty pockets or improperly seated devices before sealing.

Camera-aided test/program socket alignment

  • Quick and easy calibration.
  • Seamless integration with Exatron software.

Robotic alignment
  • Top inspection conducts gross alignment to ensure precise pickup.
  • Bottom inspection identifies X,Y, angle position of device and pickup adjusts as needed.
  • 360º rotating pickup head travels on X, Y, and Z axes.
  • Handles devices as small as 0.8mm x 0.8mm

Random sort
  • Top camera locates and reports position of devices matching size/type specifics scattered on the bulk tray.
  • Pickup head picks specified devices and rotates as needed.

3D vision options
  • Height measurement and extraction.
  • X, Y, Z measurement less than 24μm (1μm repeatability).
  • Real-time reference plane correction.
