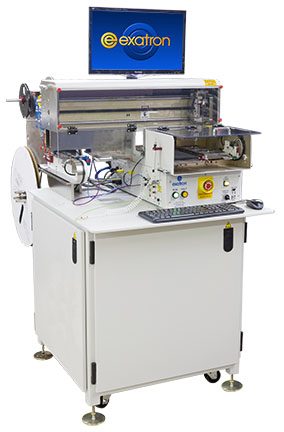

Model 802 with WRTH and Frame MountTable Top Test Handler - Output TubeTape Top Test Handler - Tape InputTable Top Test Handler - Output Tape


  • 25" (63.5 cm) W by 28” (71 cm) D by 21.5" 55 cm) H
    (With standard 24" gantry. 30" gantry available.)
  • 2 JEDEC trays
  • Single test site standard. Dual sites available.
  • Handles devices 1.6 x 1.6mm to 60 x 60mm*
    • *requires additional hold down cylinder.
    • 1.6 x 1.6mm to 25 x 25mm with thermal test options. (up to 60 x 60mm with special options)
  • Handles all SMD and leaded device types
  • Near zero mechanical adjustment or change over kits
  • User-friendly Windows 10-based GUI
  • Software configurable binning
  • Servomotor/PC controlled device placement and contact force
  • Double stack protection
  • Continuous automated retest
  • Dino-lite calibration camera ensures precise alignment
  • Available in table top or frame-mounted versions


Device TypesBGA, CSP, DIP, Flat Pack, LCC, LGA, MSOP, PCB, PGA, PLCC, QFN, QFP, SIMM, SIP, SIMM, SODIMM, SOIC, SSOIC, TSSOP, and custom devices
Test SocketsSupports nearly all OEM test sockets; Exatron custom built spring probe sockets, Exatron Particle Interconnect (PI) RF and CSP sockets
Jam Rate1/5000 when using Exatron-built test sockets
Tray2 JEDEC trays, fits all formats, 2" and 4" waffle packs, input and output tube trays, Handler tray carriages equipped with small volume "bucket" for additional sort capability
BinningUp to 8 sorts standard, output tray sort mapping; drop to bucket standard
Contact Force0-20 lbs standard, software controlled

up to 100 lbs with thermal options or additional hold down cylinder.

Tester Control InterfaceTTL/opto isolated; RS-232; GPIB; Ethernet
Tester DUT/Socket Board8" under side of board clearance; up to 18"x 18" square with centered socket; many mounting options
Operator InterfaceWidows 7 user interface; data log file generation software standard
Remote ControlInternet access standard; remote training, troubleshooting, and service standard
Dimensions and Weight25” (63.5 cm) W by 28” (71 cm) D by 21.5” 55 cm) H (excludes light pole); under 100 lbs
Facilities Requirements100-240 VAC 50/60 Hz, 80 PSI @ 5 CFM Clean Dry Air (CDA), Internet connection (NOTE: For standard applications upgrade is available allowing no additional required air supply for customers with no CDA available)
Vision AssistStandard built-in camera assists in set up of new devices
Double Part ProtectionStandard built-in vacuum sensor checks for empty socket at start of job and checks every pick and place during operation
Mechanical Precisor ReadyBuilt-in controls for many possible precisor options

Near kit-less changeover:

  • Change the pickup tip (if needed, no tools required)
  • Change out the test socket
  • Load new JEDEC trays
  • Load a previously set up JOB file and run next test

All mechanical changeover adjustments are software-controlled with standard setup.


  • Single temp. test site (requires 30" gantry)
  • (-75°C) -55°C - 155°C (+175°C) test capability
  • Thermal options require frame mounted option

MEDIA UPGRADES: (May required additional gantry length)

VISION UPGRADES: (May required additional gantry length)

  • Top-side OCR camera (for serialized device testing)
  • Bottom-side 2D and 3D-lead inspection options (requires frame mount option)



  • Table top mount standard
  • Many welded steel frame/table options
  • Built-in lift options allow effortless handler movement


  • Printed label application
  • Ink dot application
